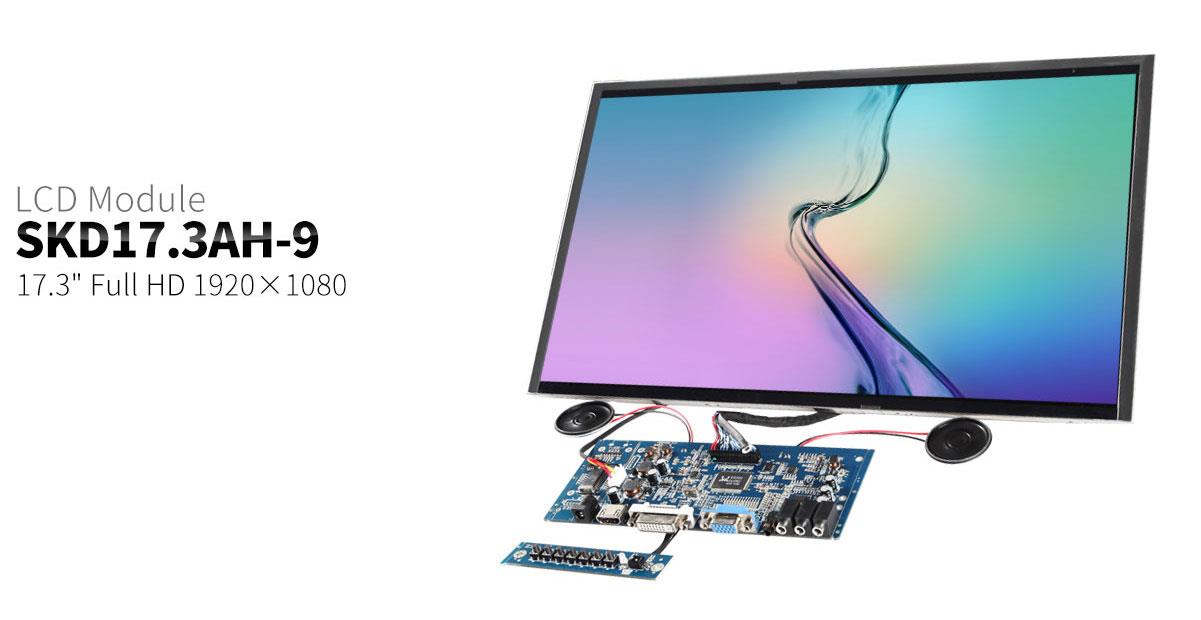

17.3" Full HD 1920×1080 LCD SKD Module SKD17.3AH-9
Model:SKD17.3AH-9
Introduction
Screen Size: 17.3"
Resolution: 1920×1080 pixels
Aspect ratio: 16:9
Brightness: 400cd/m²
Input
HDMI, VGA, AV1, AV2, Audio
Output
Audio
DM
Shop/2017/9/SEETEC-SKD173AH-9-Specification.pdf
Download
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES


The SEETEC industrial LCD Module series provides industrial grade LCD panels, which are developed specially to work with embedded boards, provides flexible customization services.SKD LCD Module can be used in a wide variety of industrial and commercial applications. Perfect for: gaming, ATM machines, kiosk displays, and much more, SEETEC SKD LCD Module offer easy integration for maximum flexibility. Featuring a variety of sizes and aspect ratios, the applications are nearly limitless with SKD LCD Module.
Features:
SEETEC SKD modules are manufactured with steady performance and low power consumption. They are mainly applied to various facilities, such as car navigation system, HTPC, thin client PC, panel PC, POS, industrial control system etc.
SEETEC SKD modules are manufactured with steady performance and low power consumption. They are mainly applied to various facilities, such as car navigation system, HTPC, thin client PC, panel PC, POS, industrial control system etc.
Customization Services:
We're able to design and adjust both hardware and software to match your cost and application requirement. The interface optional.
We're able to design and adjust both hardware and software to match your cost and application requirement. The interface optional.

Display Spec.
Model | SKD17.3AH-9 |
Screen Size | 17.3" |
Color Depth | 16.7M |
Resolution | 1920×1080 pixels |
Pixel Pitch | 0.1989(H)×0.1989(V) mm |
Aspect Ratio | 16:9 |
Brightness | 400cd/m2 |
Contrast Ratio | 600:1 |
Backlight | LED |
Viewing Angle | 80°/80°(L/R) 60°/80°(U/D) |
Interfaces (Optional)
HDMI, DVI, VGA, YPbPr, Video, Audio in, Aduio out |
Audio out, Audio in, HDMI, VGA, AV1, AV2 |
VGA, S-video, Video, Audio R/L in, Audio in, Audio out |
General
Input Voltage | DC 7~18V |
Power Consumption | ≤20W |
Working Temperature | -10℃~50℃ |
Storage Temperature | -20℃~60℃ |
Unit Size | 403L x 240H x 12.5D (mm) |
Unit Weight | 1200g |

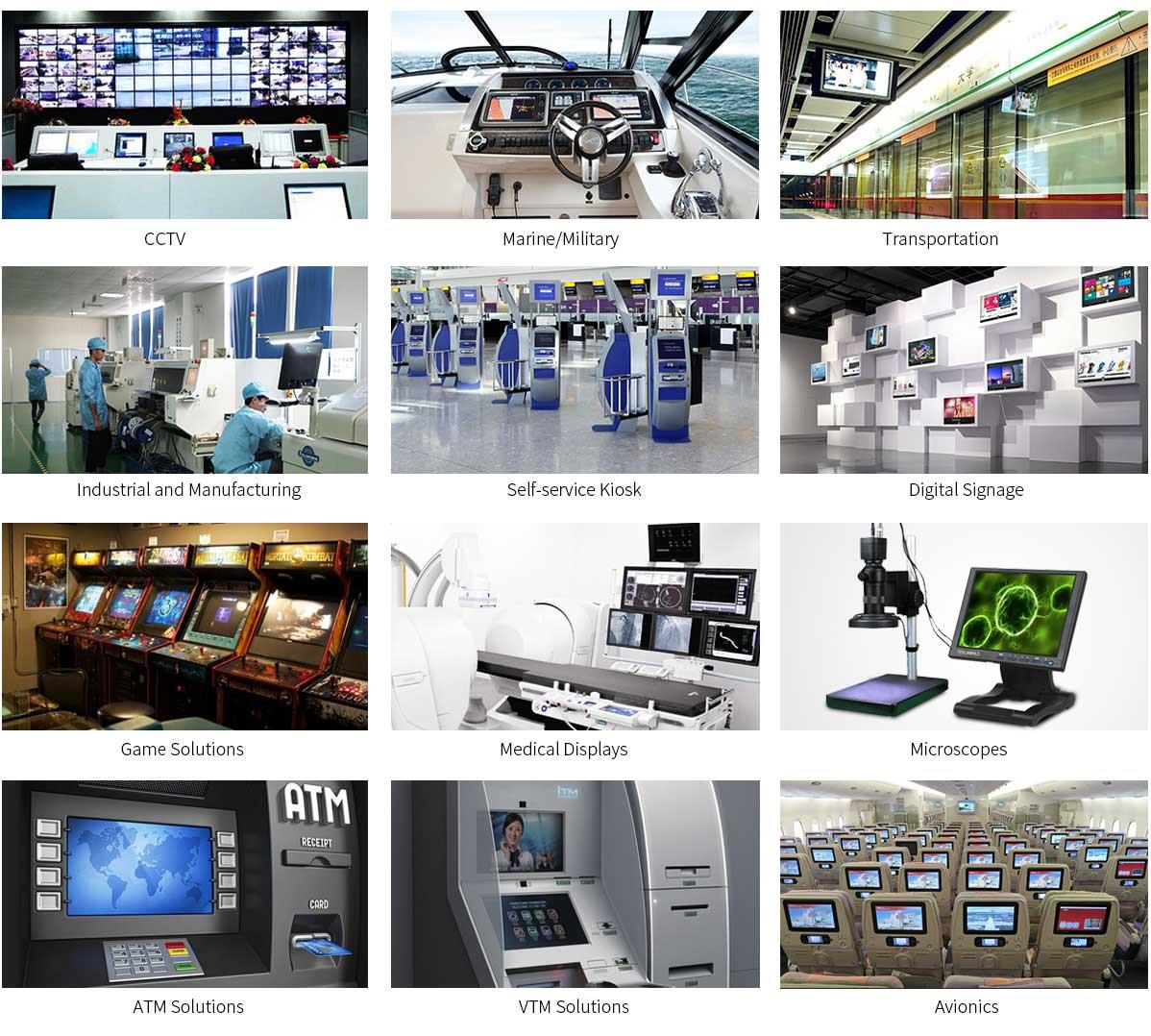

Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
