21.5" IPS Full HD 1920x1080 Desktop Broadcast Studio Monitor with 3G-SDI HDMI AV YPbPr P215-9HSD

Hits： 次

Model：P215-9HSD

Introduction

Screen Size：  21.5" IPS
Resolution：   1920x1080 pixels
Aspect ratio： 16:9
Brightness：   250cd/m²

Input

3G-SDI, HDMI, YPbPr, Video, Audio(L/R)

Output

3G-SDI, HDMI, YPbPr, Video, Stereo Headphone, Speaker(built-in)

DM

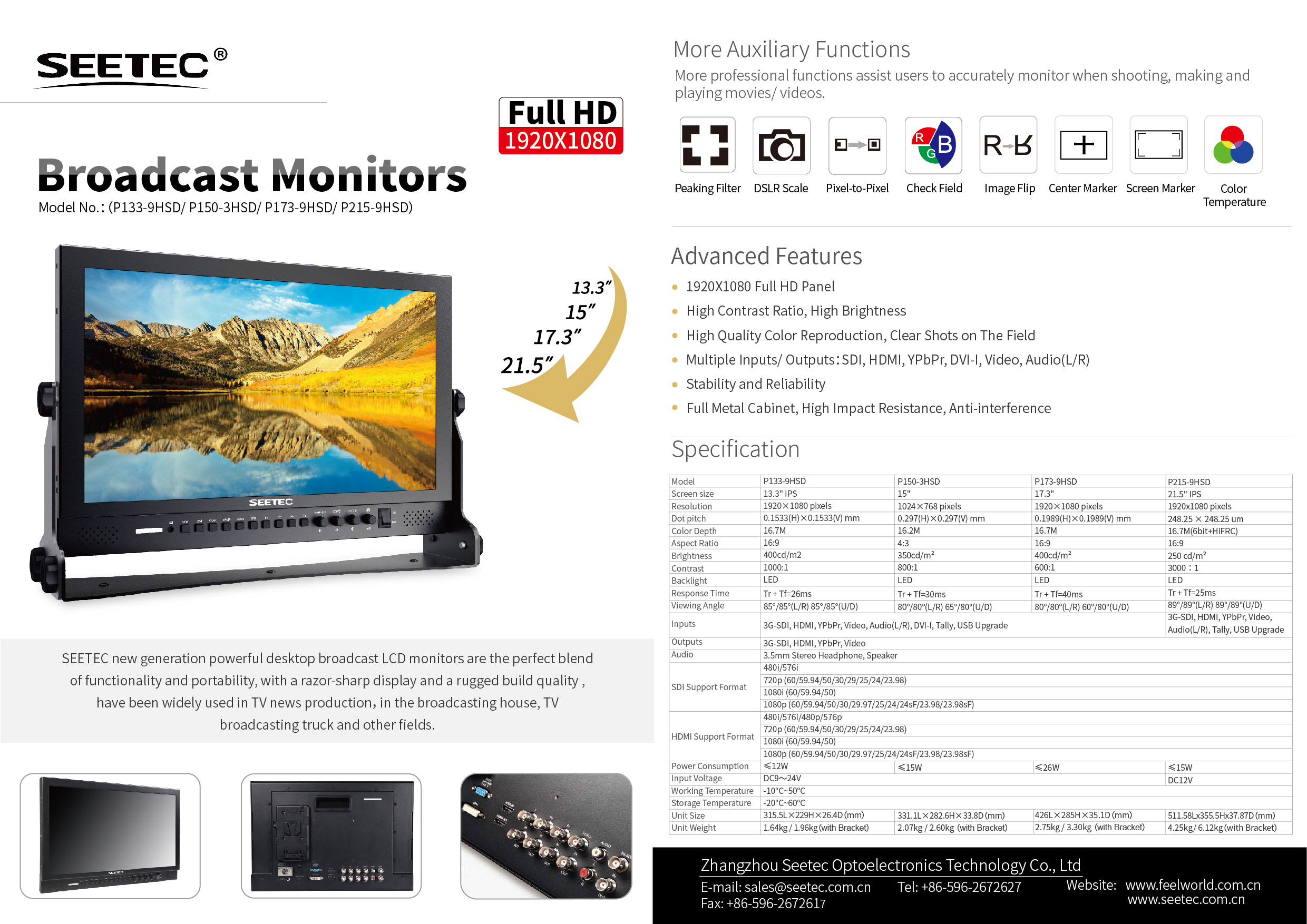

pdf Shop/2017/9/SEETEC-Desktop LCD Monitor-Specification1.jpg

Download

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES

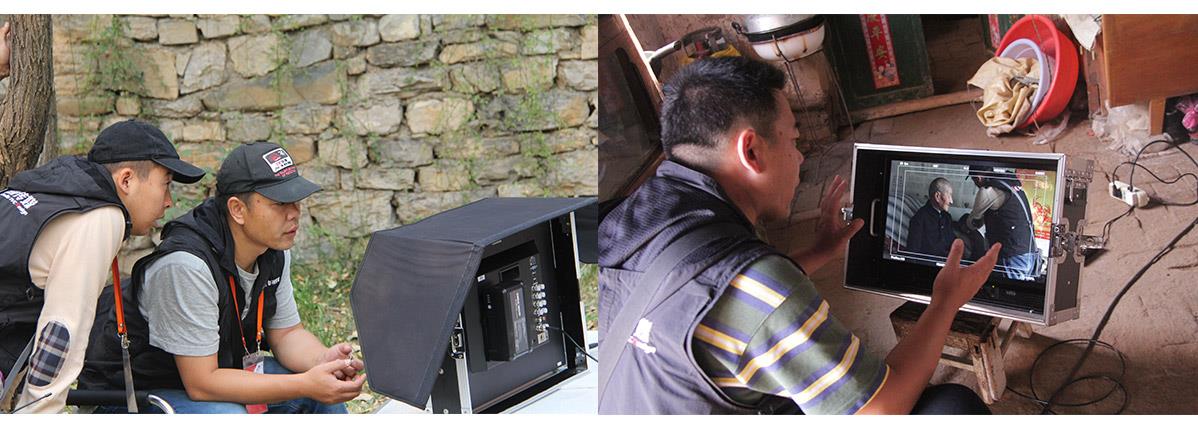

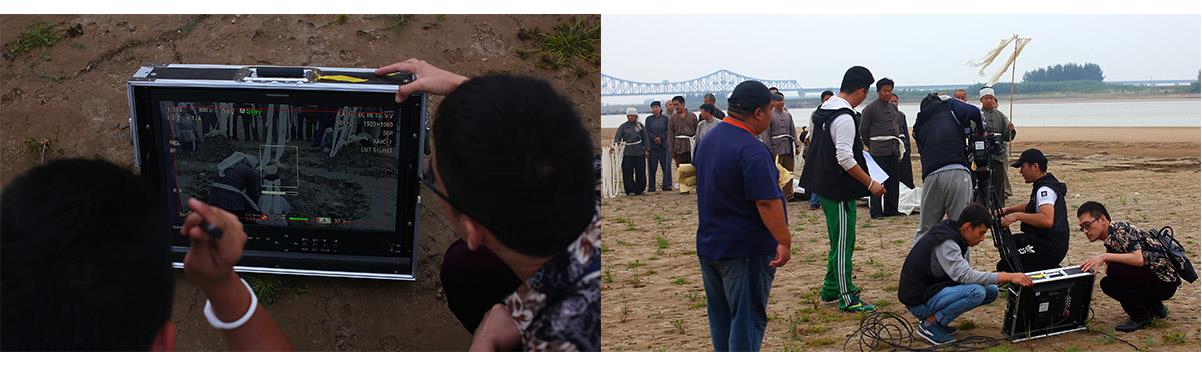

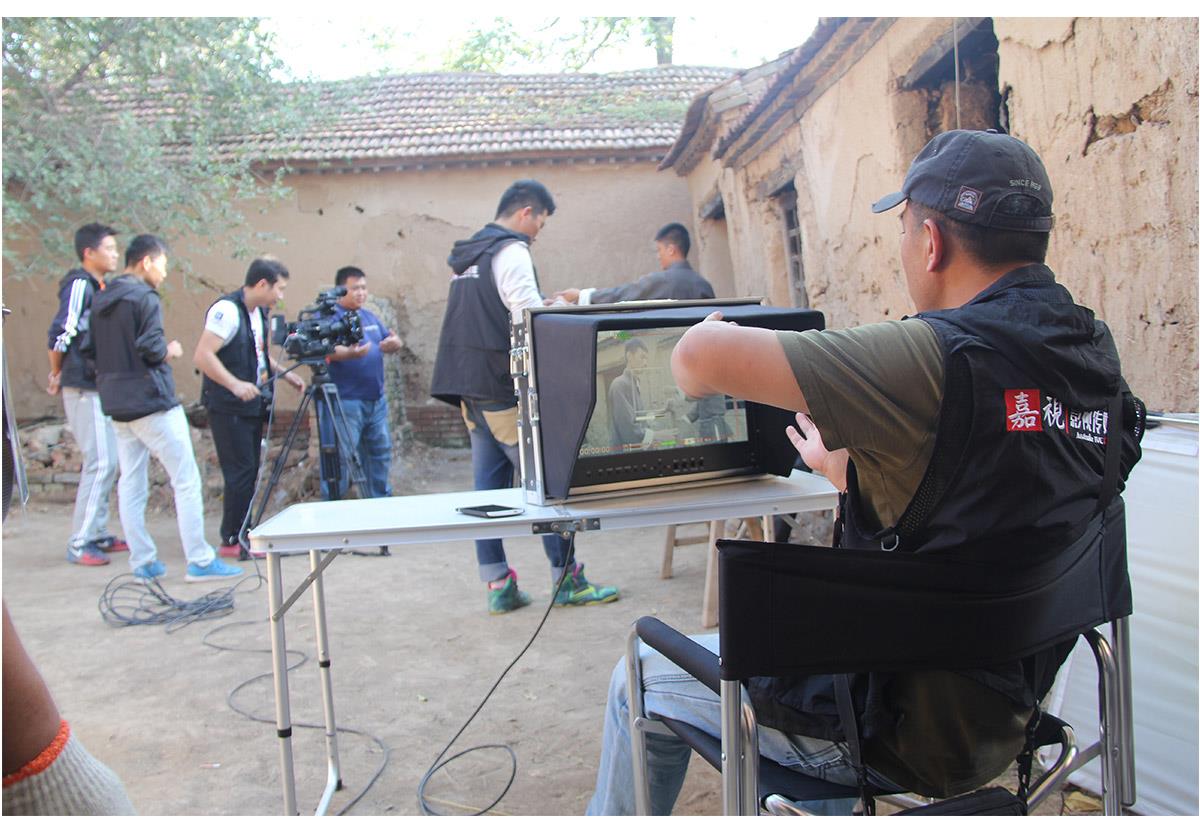

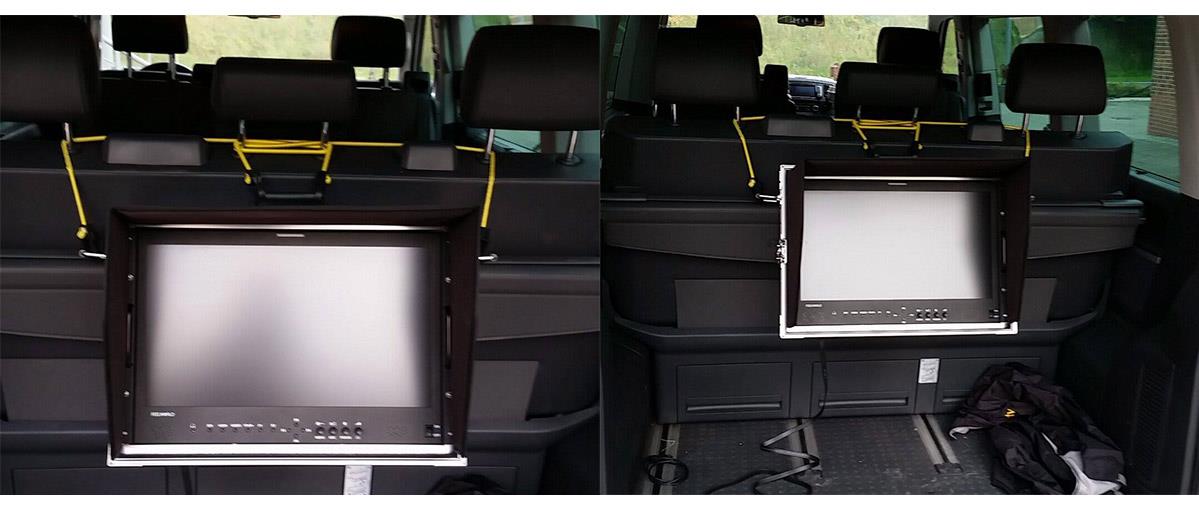

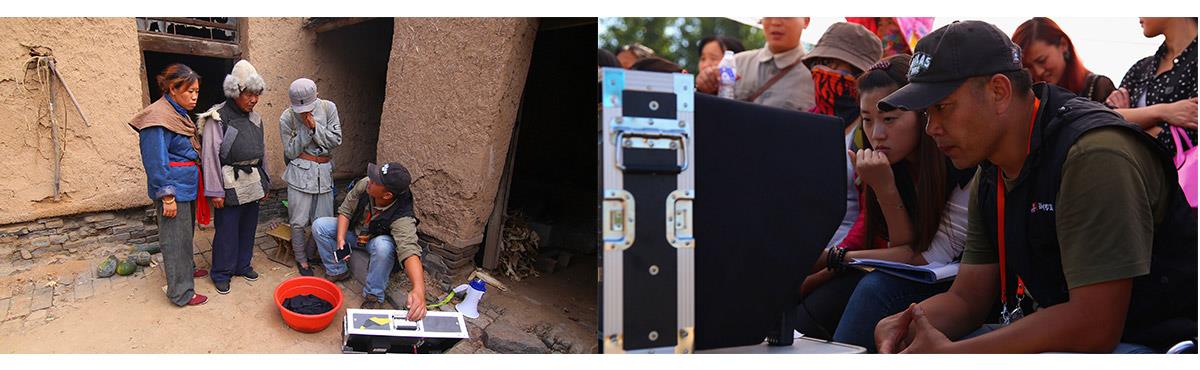

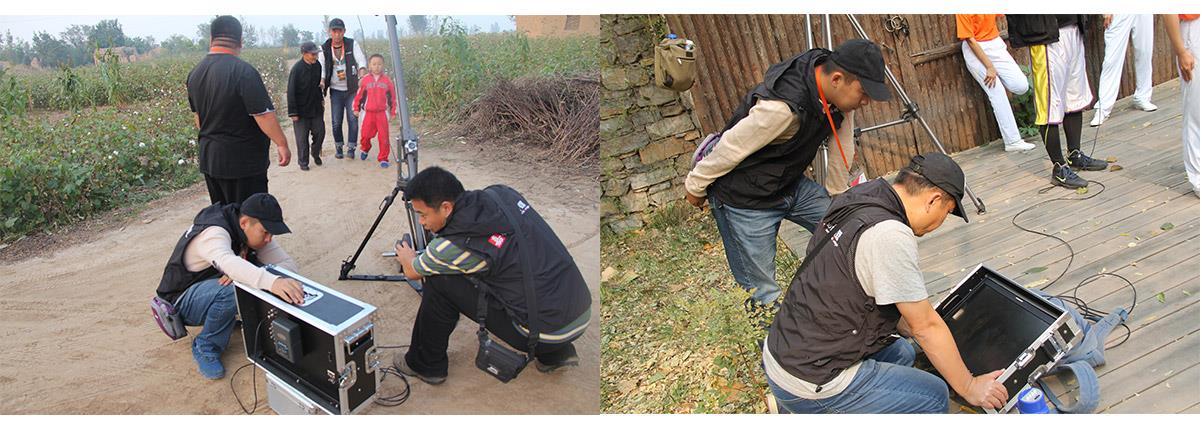

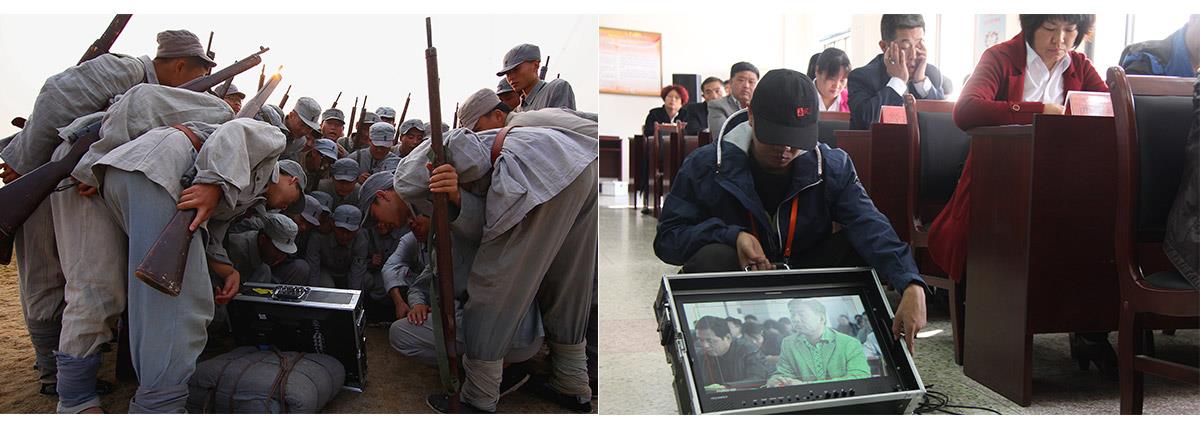

SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.

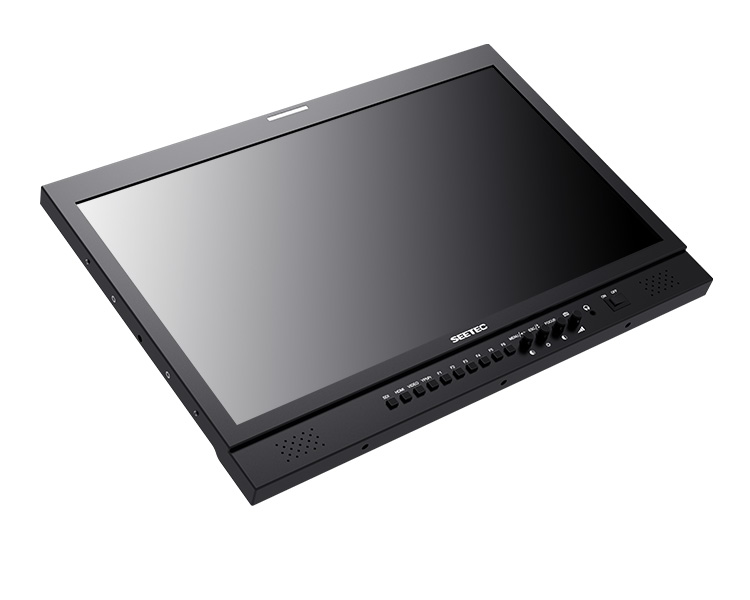

The full Aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full Aluminum case improves the anti-interference capability! More Stablity and Reliability！



High Quality IPS Panel

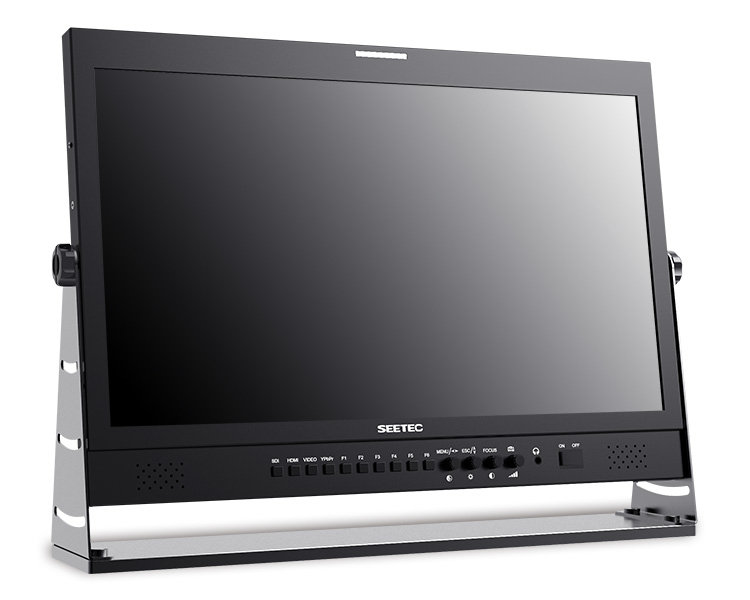

P215-9HSD is a 21.5" full HD 1920X1080 resolution, high contrast 3000:1 monitor, with wide viewing angle IPS Panel. The Color Space is rich and high in performance which brings more details, true color and a better sensory experience for the user.



Wider Viewing Angle

Enjoy Consistent Images from Any Perspective
P215-9HSD uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output, up to 250nit, High Contrast 3000:1. This means you'll be able to see accurate, consistent and bright images from any point of view.

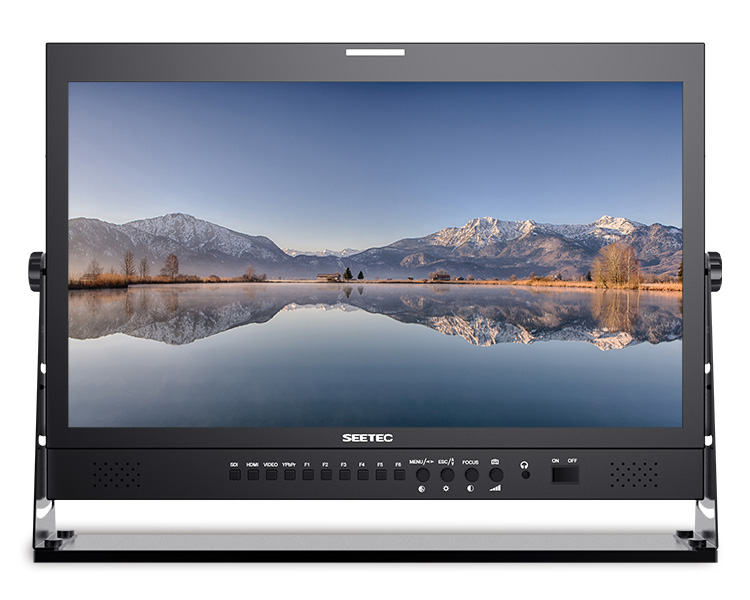

Function Buttons for Easy Operation

Most professional applications require the funtions in Professional Broadcast LCD Monitors, such as: Peaking Focus Assist, Pixel-to-Pixel Mode, Center Marker/ Screen Marker, etc., which can be set on F1~F6 (fast key) on the front panel.

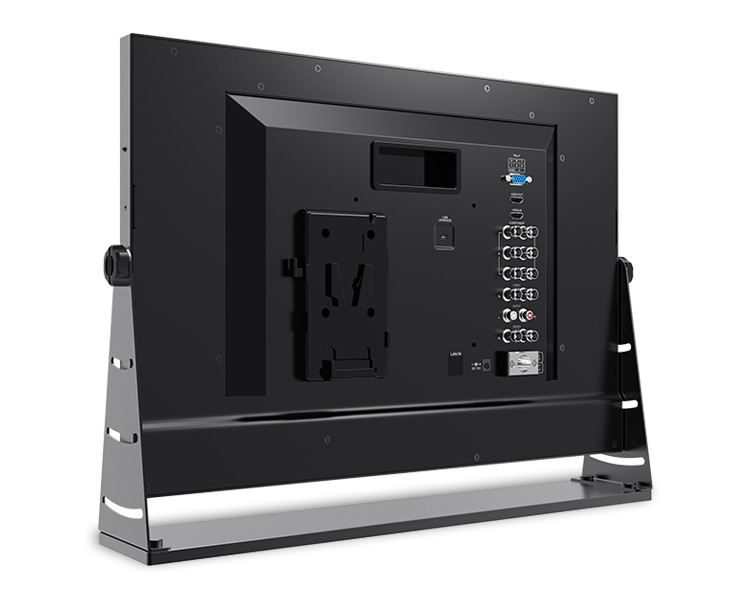

Multiple Inputs and Outputs

Multiple input formats meet the needs of the professional input and display functions with all HD, SD analogue video signal inputs. The monitor comes with 3G HD-SDI, HDMI, Composite, and Component Input and Ouput. P215-9HSD has both HDMI and SDI in and out, to allow it not only display live signals, but also send them out to other monitors simultaneously. It's able to display live picture on multiple displays at the same time while it still maintains the original video quality.



1. Wide view angle IPS Screen, Full HD 1920x1080, bright, colorful display
2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R) inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
6. Power using included 12-volt supply or use standard 4-pin XLR
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Camera Mode Function
It will be full screen under camera mode.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

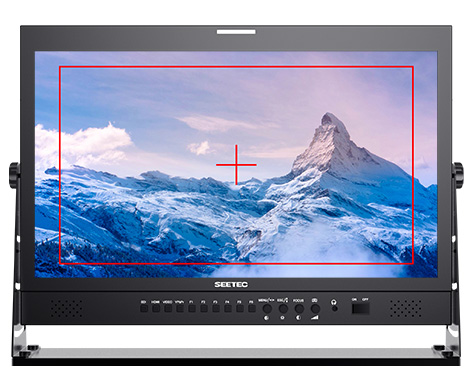

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)
Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.





Display Spec.
 Model  P215-9HSD
 Screen Size  21.5" IPS
 Color Depth  16.7M
 Resolution  1920×1080 pixels
 Aspect Ratio  16:9
 Brightness  250cd/m²
 Contrast Ratio  3000:1
 Backlight  LED
 Viewing Angle  89°/89°(L/R) 89°/89°(U/D)

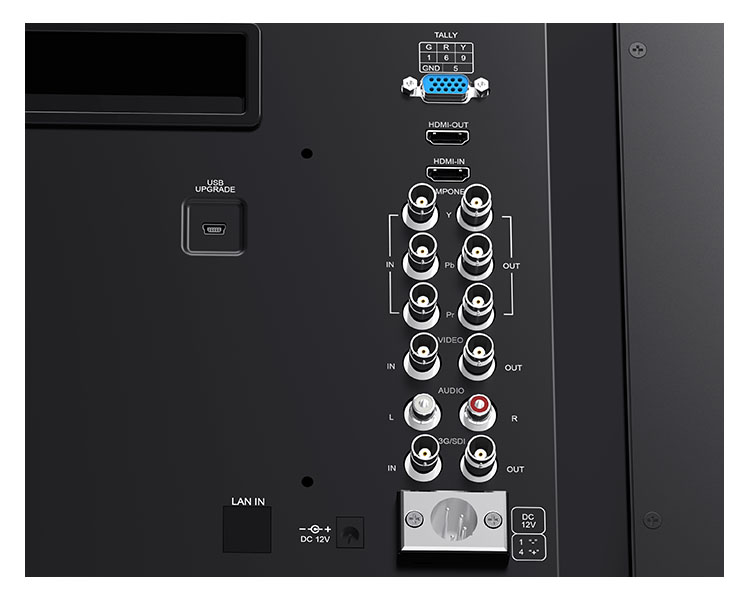

Input
 1 X BNC  3G-SDI
 1 X HDMI  HDMI
 3 X BNC  YPbPr
 1 X Video  Video
 2 X RCA  Audio(L/R)

Output
 1 X BNC  3G-SDI
 1 X HDMI  HDMI
 3 X BNC  YPbPr
 1 X Video  Video

Audio
 Audio Out  Stereo Headphone, Speaker

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General
 Input Voltage  DC12V
 Power Consumption  ≤15W
 Working Temperature  -10°C~50°C
 Storage Temperature  -20°C~60°C
 Unit Size   511.58Lx355.5Hx37.87D(mm) /535L×400H×100D(mm) (W/ Bracket)
 Unit Weight  4.25kg/ 6.12kg(with Bracket)
 Outer Carton Qty  2
 Outer Carton Size  625*288*520 (mm)
 Gross Weight  13kgs

Advanced Features
* Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%,2.35:1)
* Image Freeze
* Image Flip (H, V, H/V)
* Camera Mode
* Pixel-to-Pixel
* Check Field (Red,Green,Blue,Mono)
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
* Built-in LED tally indicators



Dimensions (Unit: mm)

Standard Accessories:
  1× Mini HDMI Cable
  1× V Battery Plate
  1× 3A Power Adapter
  1× Tally Kit
  1× Jib Crane Bracket
  1× Operation Manual
